The knee setting on a compressor is one parameter that often flies under the radar. In fact, many producers and engineers (including myself for quite some time after I started my career) really aren't sure how to use a knee setting properly.

Despite its elusive reputation, it plays a critical role in how your audio responds to compression. If your compressor offers control over the knee, it’s definitely worth taking the time to understand. That's why,  in this article, we’ll take a closer look at what the knee is, how it works, and why it’s an important tool to have in your production toolkit.

But first, a small recap on compression:

A Quick Definition of Compression

At its core, compression is used to control dynamic range - the difference between the loudest and quietest parts of your signal. Whether you’re using a VCA, FET, optical, or any other type of compressor, they all share this common goal. Sounds simple enough, right?

But, as with most things in music production, the devil is in the details. While the ultimate purpose is the same, how a compressor behaves can vary greatly depending on settings like attack and release . These two parameters, for example, control how quickly the compressor reacts to changes in volume.

Then, we have the threshold and ratio . The threshold determines the point at which compression kicks in, while the ratio, on the other hand, decides how much compression is applied once the threshold is surpassed.

For instance, a 4:1 ratio means that for every 4 dB the audio goes over the threshold, only 1 dB will be allowed to pass through.

Some compressors allow you to tweak all these parameters, while others have them built right into the design, making certain decisions for you.

What is the Knee Setting on a Compressor?

The knee setting on a compressor is essentially how the compressor transitions from no compression to full compression, and it ties directly into the threshold and ratio settings. When audio exceeds the threshold, the compressor kicks in and begins applying compression according to the ratio.

The knee control determines how gradually or abruptly this change happens .

While you’ll often see the knee setting given a numerical value, it's usually easier to think about it in more qualitative terms, like hard or soft. A "hard knee" means that once the signal crosses the threshold, compression happens quickly and with little to no transition.

It’s like a sudden, sharp press. Once your signal crosses the threshold, you hear compression kick in immediately. On the other hand, "soft knee" settings apply gradual compression as the signal approaches the threshold, making the change smoother and less noticeable. This can result in a more natural-sounding compression that doesn’t feel quite as harsh or abrupt.

Why Do I Need to Care?

So, why should you care about the knee setting in the first place? Well, the knee control determines how smoothly or abruptly your compressor reacts to your signal. Are you looking for a smooth, natural compression or a more in-your-face, tight control? The knee will help you answer that. It's a subtle but important factor in determining how your compressor behaves.

The good news is that many compressors actually take the guesswork out of it for you.

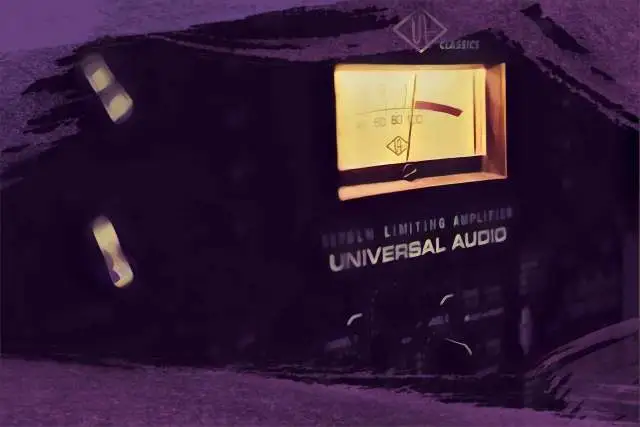

In fact, a lot of popular compressors don’t even have a knee control at all, because the knee behavior is already baked into their design. For example, the Universal Audio 1176 is known for its "hard knee" response, giving you punchy, immediate compression.

On the other hand, compressors like the LA-2A are more famous for their soft knee, gently applying compression for a smooth, transparent sound.

If you’ve been using these types of compressors for a while, you might already have a sense of how one knee sounds versus another, even without thinking too much about the technical details.

But if you do find yourself with a compressor that lets you adjust the knee, you’ll have more control over how your compression feels and sounds.

How to Use a Knee Compressor

Moderate Compression for Peaks

When I'm working with dynamic signals (such as vocals or bass) for a modern track, one technique I rely on often is serial compression. This simply means I use multiple compressors in a chain, each doing a little bit of the work to control the dynamics, rather than relying on a single compressor to handle everything.

The first compressor in this chain usually just targets the loudest moments or peaks in the track. By catching these peaks early on, it makes the rest of the processing much easier and more controlled down the line.

Now, when it comes to managing those peaks, a soft knee wouldn’t really be the best choice. With a soft knee, the compressor gradually begins to clamp down as the signal approaches the threshold, which works great for a more natural compression, but not so much for those peaks that need immediate attention.

A moderate knee, however, strikes a balance. It reacts quickly enough to handle peaks without making the transition feel too harsh or obvious.

This approach usually only requires a small amount of gain reduction, maybe a few dB at most. It’s typically not enough on its own to completely compress the sound, but it sets a clean foundation for further compression or processing down the chain.

Hard Knee Compression on Drums

When it comes to drum compression, I could honestly talk about it for hours. It’s one of those topics in the music world that has a million different ways to approach. However, when it comes to compressing a single-channel drum track, like a close snare mic or a kick mic, I like to use hard-knee compression.

This type of compression is perfect for creating a sense of consistency in the sound. If you’ve got a snare hit that’s just a little too loud compared to the others, hard-knee compression can smooth it out without losing that punch.

I usually pair that with a slow attack time. This helps the initial transient (that snap you get when a snare drum hits) punch through without getting squashed. Then, I’ll time the release so that it matches the rhythm of the track, almost breathing with the music.

For modern-sounding rock or pop tracks, I’ll usually use a higher ratio to keep everything tight and controlled. On the flip side, if I’m going for a more vintage sound, I’ll dial the ratio down a bit. A lower ratio gives you that classic, loose, and more dynamic sound you hear in older records.

Soft Knee Compression for Vocals

When I talk about soft-knee compression, I like to call it "smooth compression." It’s the velvet touch of compression, as it helps ease into the sound and soften peaks in a way that feels natural, not forced. This makes it a classic go-to for vocals and, really, any instrument that has a vocal-like quality (acoustic guitars, saxophones, or winds).

One of the best examples of soft-knee compression is the LA-2A. It's a compressor that’s been used on countless iconic vocal tracks for decades. The original LA-2A hardware is crazy expensive (if you can find one below $4,000, kudos to you!).

Luckily, there are plenty of great plugin versions out there that give you that same smooth vibe. Waves, Universal Audio, and even Native Instruments have fantastic LA-2A emulations that do the job without leaving you broke!

Even if you don't have an LA-2A plugin, you can also achieve that same smooth compression using a different compressor with a soft-knee setting. A 2:1 or 3:1 ratio with a medium attack and release time works great for this.

The key here is to keep things gentle. You're not trying to clamp down hard on the sound. The medium attack allows some of the initial transient through, giving it a natural vibe, and the medium release ensures it doesn’t choke the life out of the sound.

I’ll usually pair soft-knee compression with a faster compressor first, just to control those super dynamic moments.

Final Thoughts

When it comes to audio compression, the knee is just as important as the attack and release. Don’t overlook it! The knee controls how a compressor behaves when it kicks in. Whether it’s a hard knee that slams down on the sound or a softer knee that gradually pulls back with more transparent compression, it plays a huge role in shaping the tone and feel of your track.

The right knee setting can make a world of difference in how the compression sits with the rest of your mix.

So, as you experiment with compressors, don’t forget to pay attention to the knee, alongside your attack, release, and ratio. With the right balance, you can dial in the perfect sound for whatever vibe you're going for.
